Turbidity sensor - เครื่องวัดความขุ่น
>>
4

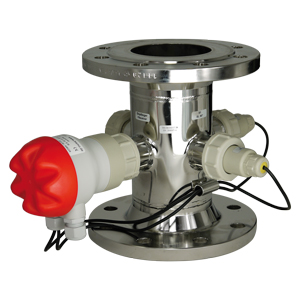

In line turbidity transmitter รุ่น TRUBOMAT® GAB
รายละเอียดสินค้า :
Power supply: 24 V DC rated (10...30 V DC)
Power consumption: 0,5 W
Output signal: 4-20 mA, for connection to the BAMOPHOX TUR 436
Ambient temperature: +5...+45 °C
Process temperature: +5...+100 °C
Material: 316L Stainless steel body / Terminal housing plastic PBT, IP 65
Accuracy: ±5% reading, ±1% full scale in use
Resolution: 0,001...0,2 FNU according to measuring range
Status indication: Green LED = correct
Red LED = failure
Selectable ranges TRUBOMAT 1000:
0.1 to 50 FNU
0.1 to 100
0.1 to 200
0.1 to 500 (or 0.1 to 300*) FNU
100 to 1000 FNU
* fittings DN80 & DN100
Selectable ranges TRUBOMAT 20:
0.01 to 1 FNU
0.01 to 2 FNU
0.01 to 5 FNU
0.01 to 10 FNU
0.01 to 20 FNU
* fittings DN80 & DN100
Material: Stainless steel body
