Turbidity sensor - เครื่องวัดความขุ่น
>>
5

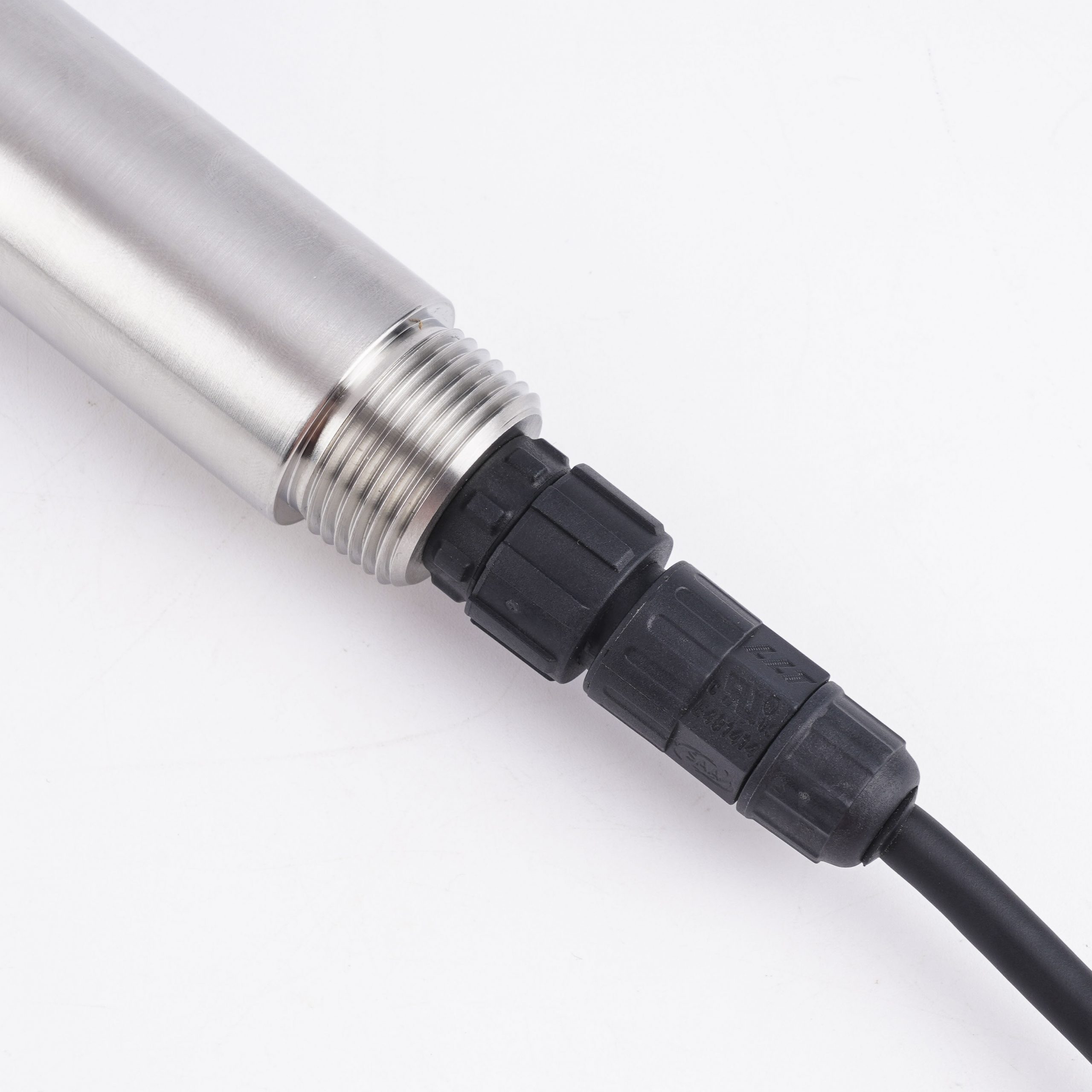

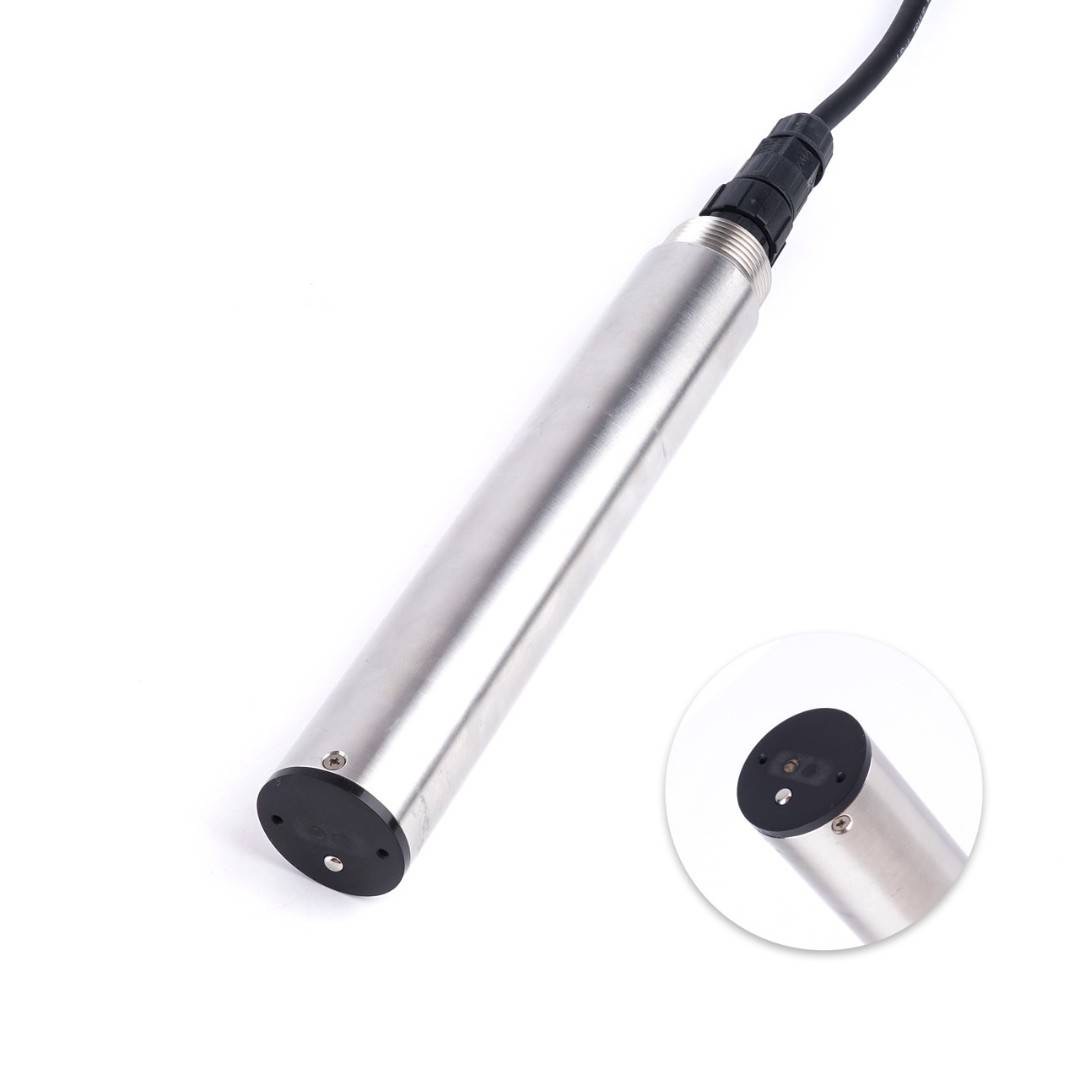

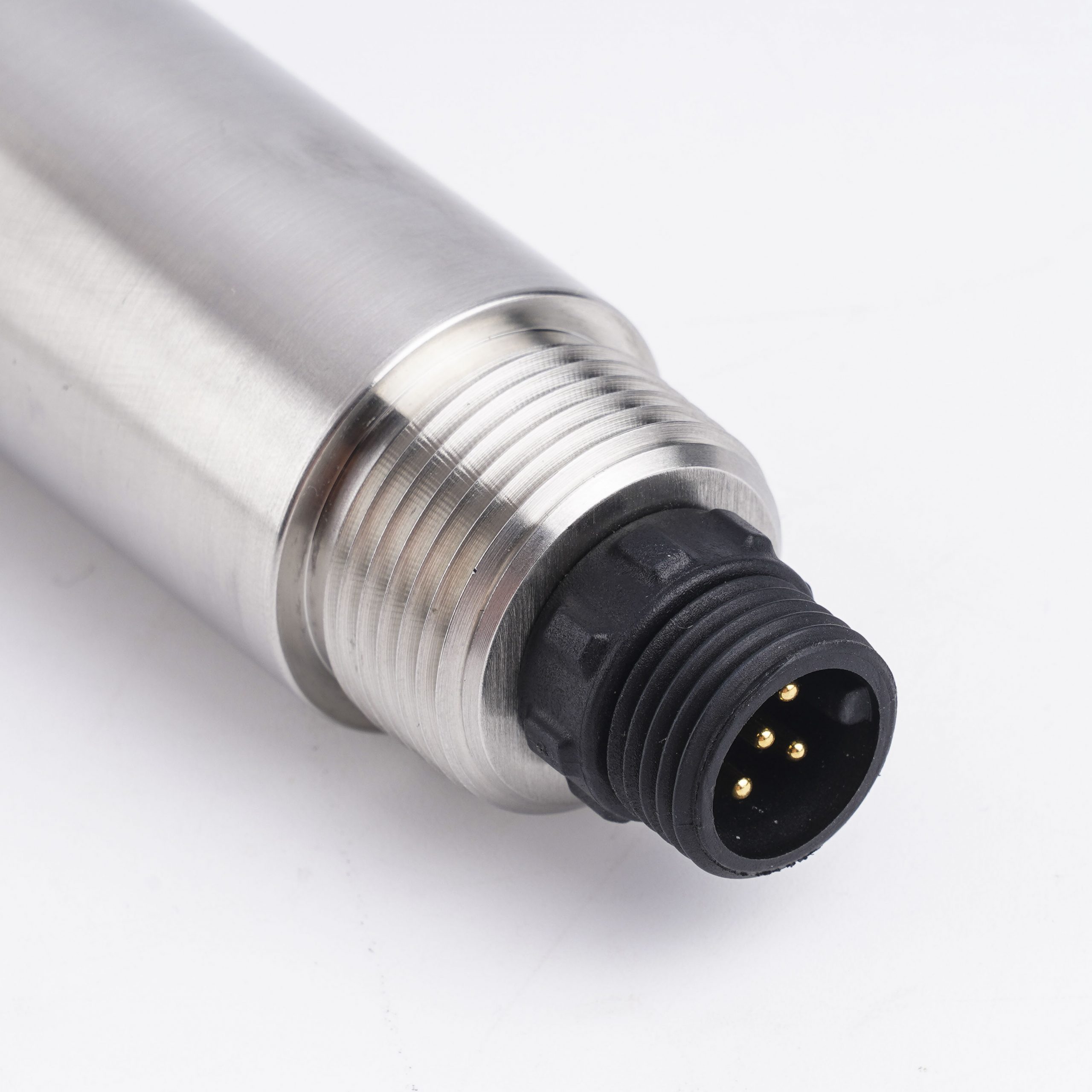

Turbidity Sensor Online รุ่น ZS-406
| Model | ZS-406 | |
| Measuring principle | Scattering light method | |
| Measuring range/Resolution | 0～20.00NTU | 0.01NTU/0.1℃ |
| 0～100.0NTU | 0.1NTU/0.1℃ | |
| 0～1000.0NTU | 0.1NTU/0.1℃ | |
| Accuracy | ±5% or ±3NTU(0～1000.0NTU) ±3% or ±2NTU(0～100.0NTU) ±3% or ±1.5NTU(0～20.00NTU) ±0.3℃ | |
| Calibration mode | Two-point calibration | |
| Temperature compensation | Automatic temperature compensation(Pt1000) | |
| Output mode | RS-485( Modbus /RTU) and 4-20mA | |
| Working conditions | 0～50℃，<0.2MPa | |
| Storage temperature | -5～65℃ | |
| Installation mode | Immersive installation, 3/4NPT thread | |
| Cable length | 5 meters, other lengths customizable | |
| power dissipation | 0.2W@12V | |
| Source | 12～24VDC | |
| Levels of protection | IP68 | |
| Sensor shell material | ABS and 316L stainless steel | |
